ATS3PC0125 Double Throw ATS for Telcom Station and Home Use    ATS3PC0125-2 Double Throw ATS for Telcom Station and Home Use

ATS3PC0125-11 / ATS3PC0125-22

Double Throw Type ATS Ideal for Industrial and Home Use

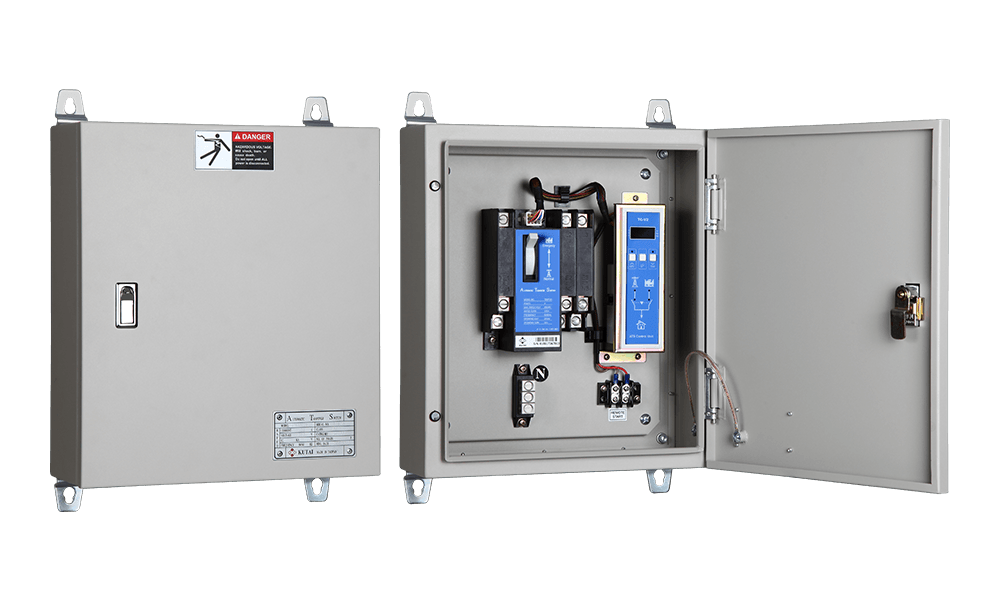

The ATS3PC0125 is a brand new modularized PC type ATS Automatic Transfer Switch with enclosure. Ideal for household power systems and telecommunication cell site, with rated current of 125A and rated voltage 110 Vac or 220 Vac three phase to choose from, it can be electrically and manually operated and all parts are made with UL 94V-0 plastic for highest safety standards.

Brochure Manual Rotating Image

Features

  • Modular design for installation next to switch or on the door
  • Electrically or manually operated, mechanically held contacts
  • Adjustable time delay in neutral position
  • Compact size with user-friendly status LED display
  • Monitor Normal & Standby source OV and UV
  • Built-in 1 to 4 weeks with / without load exerciser
  • Made with UL 94V-0 plastic
  • Build-in neutral lug module
  • Designed for telecom industry or home ATS applications

Specifications

TS3P125 Switch
TS3P125 Switch
Rated Voltage 250 Vac
Rated Current 125 Amp
Rated Frequency 50/60 Hz
Switch Type Double throw with Neutral position
Operating Current 3.0A @ 220V / 6.0A @ 110V
Poles 3 Pole
Rated Short-Time Current 3.0 KA / 1 second @ 250 Vac
Short Circuit Peak Value 7.5 KA
Utilization Category AC-33A*
Life > 6000 times / with load
Rated Operating Voltage TCS3P125-11 : 90 – 140 Vac
TCS3P125-22 : 180 – 270 Vac
ATS Class PC
  • IEC60947-6-1 Utilization Category AC-33A :
    • Frequent operations.
    • Motor loads or mixed loads including motors, resistive loads and up to 30% incandescent lamp.
TC-V2 Digital Controller
TC-V2 Digital Controller
Over Volt Setting 110 – 530 Vac (adjustable)
Over Volt Reset Below 10 Vac of the OV setting
Under Volt Setting 80 – 470 Vac (adjustable)
Under Volt Reset Exceed 10 Vac of the UV setting
Adjustable Time Delay TDEN : 0 – 99 seconds
TDNE : 0 – 99 seconds
TDEC : 0 – 99 seconds
TDES : 0 – 30 seconds
TDOFF : 1 – 20 seconds
Normal ON Capacity 7A @ 250 Vac Max.
Standby ON Capacity 7A @ 250 Vac Max.
Remote Start Capacity 6A @ 277 Vac / 6A @ 28 Vdc Max.
Power Consumption < 1W
Environment
Operating Temperature -10 to +70 °C
Storage Temperature -20 to +80 °C
Humidity Max. 95%

Dimension

Dimension 400.0 (H) x 350.0 (W) x 145.0 (D) mm
Weight 9.2 Kg +/-2%

Facts

The Kutai newly developed TCS2P125 / TCS3P125 double throw automatic transfer switch has fully obtained the United States, Taiwan and China’s patent. There are 2 poles and 3 poles switches to select from.

Patented

  • U.S. Pat. No. 7,557,683
  • TAIWAN Pat. No. M346107
  • CHINA Pat. No. ZL 2008 2 0127853. 1
