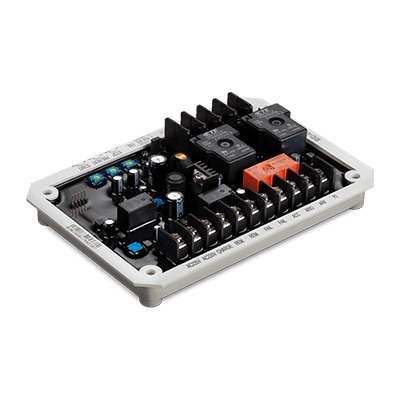

EC-02 Auto Start Control Unit for DENYO Generator works with 12V/24V

EC-02

Auto Start Control Unit for DENYO Generator

EC-02 Auto Start Control Unit designed for DENYO generators. It can accept signals from a remote switch or an automatic transfer switch (ATS) to automatically start or stop the generator. EC-02 is controlled by a microprocessor for full digital processing. reliable performance.

Works with both 12V and 24V generators.

Features

  • Specially designed for DENYO generators without Auto Start function
  • Microprocessor-based programmable controller
  • Small size, low cost and high stability
  • Very low power consumption in standby mode
  • Potentiometer time delay settings
  • Three cranking attempts
  • Generator fault indicator and alarm output contacts
  • Terminal block connections for easy installation and maintenance
  • Energize-to-Run and Energize-to-Stop options
  • The circuit board is potted with UL94-V0 rated epoxy resin to allow use in harsh environments
  • Works with both 12V and 24V generators

Electrical Specifications

  • DC Power Input
  • Voltage 9 to 36 Vdc
  • AC Power Input
  • Voltage 100 to 250 Vac
    Frequency 50 / 60 Hz
  • Static Power Dissipation
  • Less than 0.5 VA
  • Accessory Signal Output (ACC)
  • 10 Amp @ 12 / 24 Vdc
  • Start Signal Output (START)
  • 30 Amp @ 12 / 24 Vdc
  • Pre-heat Signal Output (PRE-HEAT)
  • 30 Amp @ 12 / 24 Vdc
  • Common Alarm Output (FAIL)
  • 3 Amp @ 12 / 24 Vdc
  • P2 terminal Output
  • 5 Amp @ 12 / 24 Vdc
  • AR/O terminal Output
  • 5 Amp @ 12 / 24 Vdc
  • Operating Temperature
  • -20 to +70 °C
  • Storage Temperature
  • -20 to +80 °C
  • Relative Humidity
  • Less than 95%
  • Vibration
  • 5.0 Gs @ 60 Hz
  • Dimensions
  • 162.0 (L) x 112.0 (W) x 33.0 (H) mm
    6.38 (L) x 4.41 (W) x 1.30 (H) inch
  • Weight
  • 550 g +/-2%
    1.21 lb +/-2%

Time Delay Settings and Adjustments

  • Engine Shutdown Timer (VR1)
  • 1 to 20 seconds
  • Engine Pre-Heat Timer (VR2)
  • 1 to 10 seconds
  • Engine Cranking Timer (VR3)
  • 1 to 20 seconds

LED Status Indicators

  • Alarm Indicator LED (L1)
  • Engine Start Failure
    No AC volt when engine is running
    Engine Failure Shutdown

Downloads

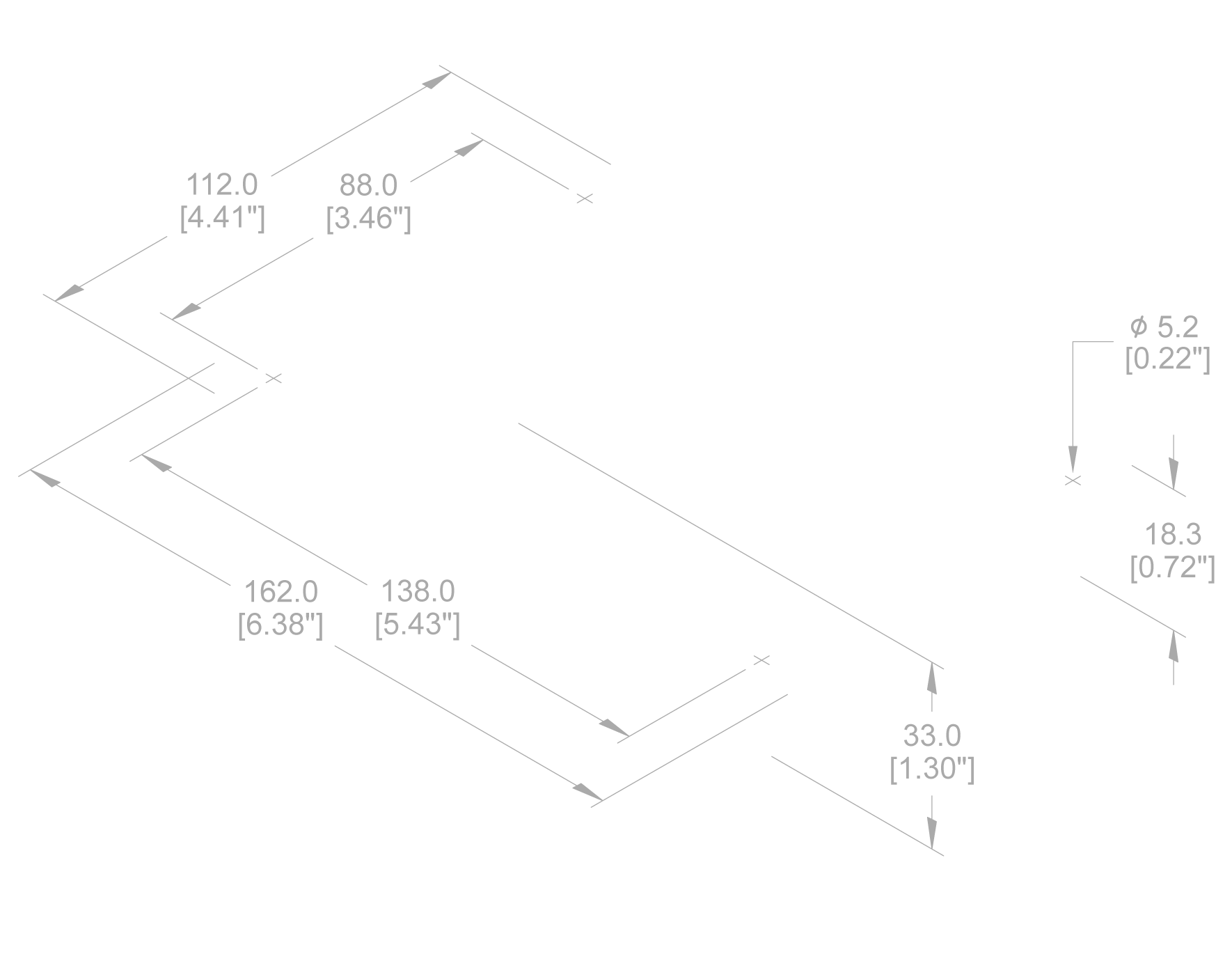

Drawing and Dimensions
