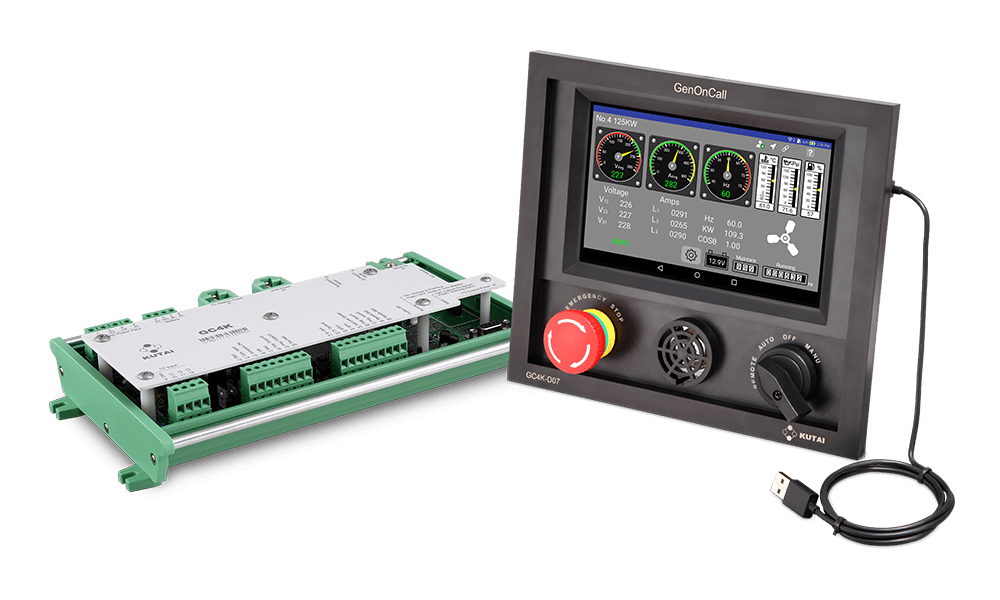

GCU-4K

Auto Start Generator Control & Protection Module with Remote Monitoring & Control

The GCU-4K is an Auto Start Genset Control & Protection system using IOT and cloud technology to provide complete remote monitoring and control of diesel and gas gensets through a mobile phone or tablet computer with the Kutai GenOnCall® app for Android and iOS.

A cell phone or tablet computer connects to the controller through the Kutai server enabling an Operator and Viewers to view real time displays of all engine and alternator parameters, an Event Log and a map display with unit locations. GenOnCall® also receives push-notification of Warnings and Events (Start/Stop).

Remotely start and stop gensets. An Engine Start warning is broadcast onsite before engine cranking to avoid injury to personnel. Standard Engine Start Warnings are offered in multiple languages, as well as allowing a self-recorded voice warning.

GenOnCall® receives notifications from the controller if battery power is removed or theft by lifting. Built-in GPS location tracks the position of all generators in real-time on Google Maps. Perfect for managing rental units at scattered locations. The GC4K-E for electronic engines can display up to 53 CANbus (SAE J1939) parameters.

Internet connection with the Kutai cloud server is achieved through WiFi, dynamic IP (Ethernet) connection, or a 3G/4G mobile router. When connected to the internet a simple procedure is all that is required to access control and monitoring functions.

System parameter settings can be input through the color, touch-screen LCD control panel. Optional KCU- modules are available for RS-485, ModBus RTU and SNMP protocols.

Features

GC4K GC4K-E
Engine block heater control for use in cold climates Displays up to 53 electronic engine control ECU (SAE J1939) parameters
High-precision Ceramic Capacitive oil pressure anddigital water temperature sensors are standard
Front panel meets IP65 standard
User-friendly, intuitive touch-screen interface to input all settings
Integrated, modular design control panel with Mode Selector Switch, Emergency Stop Button, and Alarm Speaker
Digital and Analog gauge displays for all electrical parameters
Wi-Fi, 3G/4G Mobile Router and physical Ethernet network connections
Free iOS and Android GenOnCall® App download enables remote operation,monitoring and configuration for smart phone or tablet
Choice of Chinese, English, Spanish language display
Engine Start Voice Warning broadcast in ten most common languages – also allows for user recorded engine start voice warnings
Free online updates of controller firmware and GenOnCall® apps
Provides generator location services (GPS)
Push notification for Engine Start / Stop and Fault Alarms – records up to 250 events
Real-time graphic display of AC current and voltage curves
Transfer Settings function (dump function) eliminates need to program each controller individually
Supports Modbus / SNMP / RS-485 protocols (via optional modules)
Allows for one Operator and up to four Viewers to connect simultaneously for remote monitoring and control
Battery power removed and Genset position Shifted alarm for theft alert
Two user-defined outputs and inputs for control or protection

Specifications: GC4K

System Protections and Fault Alarms
  • Full phase Over Voltage / Under Voltage and lost phase
  • Current overload
  • High water temperature
  • Low Oil Pressure
  • Engine Over Speed / Under Speed protection
  • Low Fuel Level
  • Charging Alternator failure
  • Battery abnormal voltage
  • Scheduled Maintenance notification
  • Emergency Stop alarm
  • Water temperature sender and oil pressure sender failure
  • Wi-Fi signal strength too low warning
  • User-defined input
Color Touch-screen Displayed Parameters
  • AC power parameters – V(RMS), A(RMS), Hz, KW, KWH, KVA, KVAR & PF
  • Operating Hours / Maintenance Hours / DC Battery Voltage
  • Operating Temperature (°C or °F), Oil Pressure (PSI or Bar) and Fuel Level (%)
  • Real-time graphic displays of current and voltage power quality
  • Records up to 250 events – Engine Start / Stop and all Fault Alarms
  • Genset GPS location map (only on remote monitoring app)
Electrical Specifications
DC Supply 9 – 40 Vdc
AC Voltage Input 15 – 500 Vac (Phase to Phase)
AC Voltage Frequency 50/60 Hz
Static Power Consumption GC4K : below 1W
GC4K-D07 : below 3W
USB USB 2.0
Temperature Sender (TS-03) -55 to +125 °C +/-2 °C
Oil Pressure Sender (OPS-02) 0 – 150 PSI +/-2.5%
Fuel Level Sender 0 – 480 ohms
Magnetic Pick-up (MPU) 2 – 70 Vac / 100 Hz – 10K Hz
Current Transformer (CT) 25 – 3000A / 5A or 1A
Burden > 2.5 VA
Operating Environment Operating Temperature -20 to +70 °C
Relative Humidity Max. 95%
Maximum Vibration 5Gs @ 60 Hz

Specifications: GC4K-E

System Protections and Fault Alarms
  • Full phase Over Voltage / Under Voltage and lost phase
  • Current overload
  • High water temperature
  • Low Oil Pressure
  • Engine Over Speed / Under Speed protection
  • Low Fuel Level
  • Charging Alternator failure
  • Battery abnormal alarm
  • Scheduled Maintenance notification
  • Emergency Stop alarm
  • ECU (SAE J1939) Communication Failure
  • Wi-Fi signal strength too low warning
  • User-defined input
Color Touch-screen Displayed Parameters
  • AC power parameters – V(RMS), A(RMS), Hz, KW, KWH, KVA, KVAR & PF
  • Displays electronic engine control unit ECU (SAE J1939) parameters
  • Operating Hours / Maintenance Hours / DC Battery Voltage
  • Operating Temperature (°C or °F), Oil Pressure (PSI or Bar) and Fuel Level (%)
  • Real-time graphic displays of current and voltage power quality
  • Records up to 250 events – Engine Start / Stop and all Fault Alarms
  • Genset GPS location map (only on remote monitoring app)
Electrical Specifications
DC Supply 9 – 40 Vdc
AC Voltage Input 15 – 500 Vac (Phase to Phase)
AC Voltage Frequency 50/60 Hz
Static Power Consumption GC4K-E : below 1W
GC4K-D07 : below 3W
USB USB 2.0
Current Transformer (CT) 25 – 3000A / 5A or 1A
Burden > 2.5 VA
Operating Environment Operating Temperature -20 to +70 °C
Relative Humidity Max. 95%
Maximum Vibration 5Gs @ 60 Hz

Documents


GC4K

GC4K-E

GC4K

GC4K-E

GenOnCall® - Remote App for mobile devices


Android 4.4

iOS 8.0 or later

for Android

for iOS

Dimension

GC4K Control Unit

Dimension 287.6 (L) x 160.0 (W) x 53.0 (H) mm
Weight 480 g +/-2%

GC4K-E Control Unit

Dimension 274.0 (L) x 160.0 (W) x 53.0 (H) mm
Weight 480 g +/-2%

GC4K-D07 Display Unit

Dimension 233.0 (L) x 202.0 (W) x 82.0 (H) mm
Weight 730 g +/-2%

Accessories

GC4K GC4K-E
Standard Accessories

GC4K-D07 Operator Display

HU-100-USB Cable (1 meter)

HU-100-DB9 Cable (1 meter)

Mounting Screws

User Manual DVD

GC4K Control Unit

GC4K-E Control Unit

OPS-02 Oil Pressure Sender

HU-250-OPS02 Oil Pressure Sender Cable (2.5 meters)

TS-03 Temperature Sender

HU-250-TS03 Temperature Sender Cable (2.5 meters)

Optional Accessories

KCU-02 RS-485 Communication Module

KCU-05 ModBus Communication Module

KCU-06 SNMP Communication Module

HU-500-OPS02 Oil Pressure Sender Cable (5 meters)

HU-500-TS03 Temperature Sender Cable (5 meters)
