ATS2PC0125 Residential Automatic Transfer SwitchesATS2PC0125 (Standard Model)
ATS2PC0125-2 Residential Automatic Transfer SwitchesATS2PC0125-2
ATS2PC0125 Residential Automatic Transfer Switches ATS2PC0125-2 Residential Automatic Transfer Switches

ATS2PC0125-11 / ATS2PC0125-22

Residential Automatic Transfer Switch

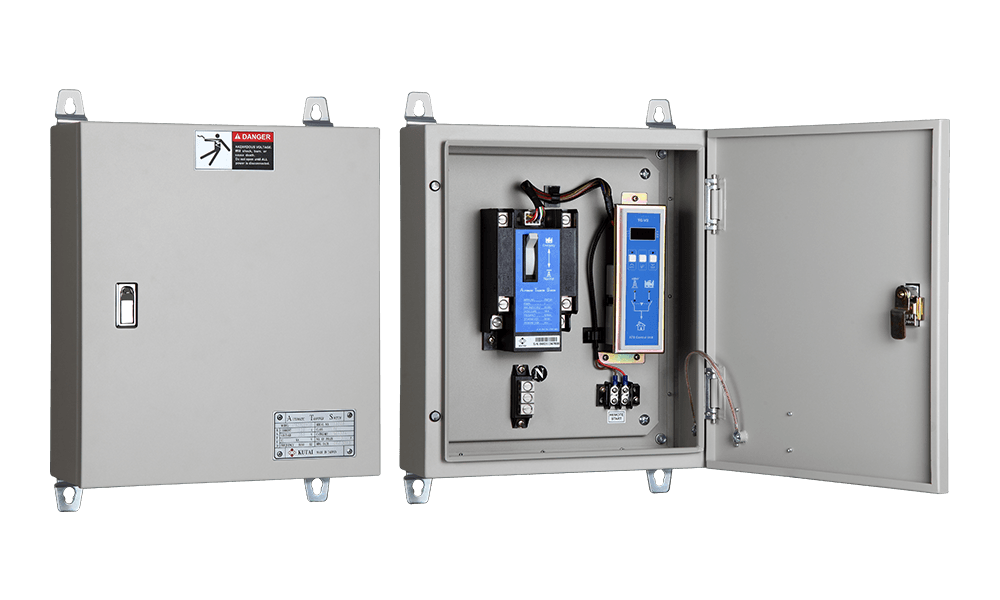

The ATS2PC0125 is a brand new modularized design ATS Automatic Transfer Switch with enclosure. Ideal for residential power systems, with rated current of 125A and rated voltage 110 Vac or 220 Vac single phase to choose from, it is electrically of manually operated and all parts are made with UL 94V-0 plastic for highest safety standards.

Features

  • Modular design for installation next to switch or on the door
  • Electrically or manually operated, mechanically held contacts
  • Adjustable time delay in neutral position
  • Compact size with user-friendly status LED display
  • Monitor Normal & Standby source OV and UV
  • Built-in 1 to 4 weeks with / without load exerciser
  • Made with UL 94V-0 plastic
  • Build-in neutral lug module
  • Designed for telecom industry or home ATS applications

TS2P125 Switch

TS2P125 Switch 2P 125Amp
  • Rated Voltage
  • 250 Vac
  • Rated Current
  • 125 Amp
  • Rated Frequency
  • 50/60 Hz
  • Switch Type
  • Double throw with Neutral position
  • Operating Current
  • 3.0A @ 220V
    6.0A @ 110V
  • Poles
  • 2 Poles
  • Rated Short-Time Current
  • 3.0 KA / 1 second @ 250 Vac
  • Short Circuit Peak Value
  • 7.5 KA
  • Utilization Category
  • AC-33A *1
  • Life
  • Over 6000 times / with load
  • Rated Operating Voltage
  • TCS2P125-11 : 90 – 140 Vac
    TCS2P125-22 : 180 – 270 Vac
  • ATS Class
  • PC

TC-V2 Digital Controller

TC-V2 Digital Controller
  • Over Volt Setting
  • 110 to 280 Vac (adjustable)
  • Over Volt Reset
  • Below 10 Vac of the OV setting
  • Under Volt Setting
  • 80 to 230 Vac (adjustable)
  • Under Volt Reset
  • Exceed 10 Vac of the UV setting
  • Adjustable Time Delay
  • TDEN: 0 to 99 seconds
    TDNE: 0 to 99 seconds
    TDEC: 0 to 99 seconds
    TDES: 0 to 30 seconds
    TDOFF: 1 to 20 seconds
  • Normal ON Capacity
  • 7A @ 250 Vac Max.
  • Standby ON Capacity
  • 7A @ 250 Vac Max.
  • Remote Start Capacity
  • 6A @ 277 Vac
    6A @ 28 Vdc Max.
  • Power Consumption
  • Less than 1W

Environment

  • Operating Temperature
  • -20 to +60 °C
  • Storage Temperature
  • -20 to +80 °C
  • Relative Humidity
  • Max. 95%

Physical Specifications

  • Dimensions
  • 455.0 (H) x 350.0 (W) x 145.0 (D) mm
  • Weight
  • 9.0 Kg +/-2%
