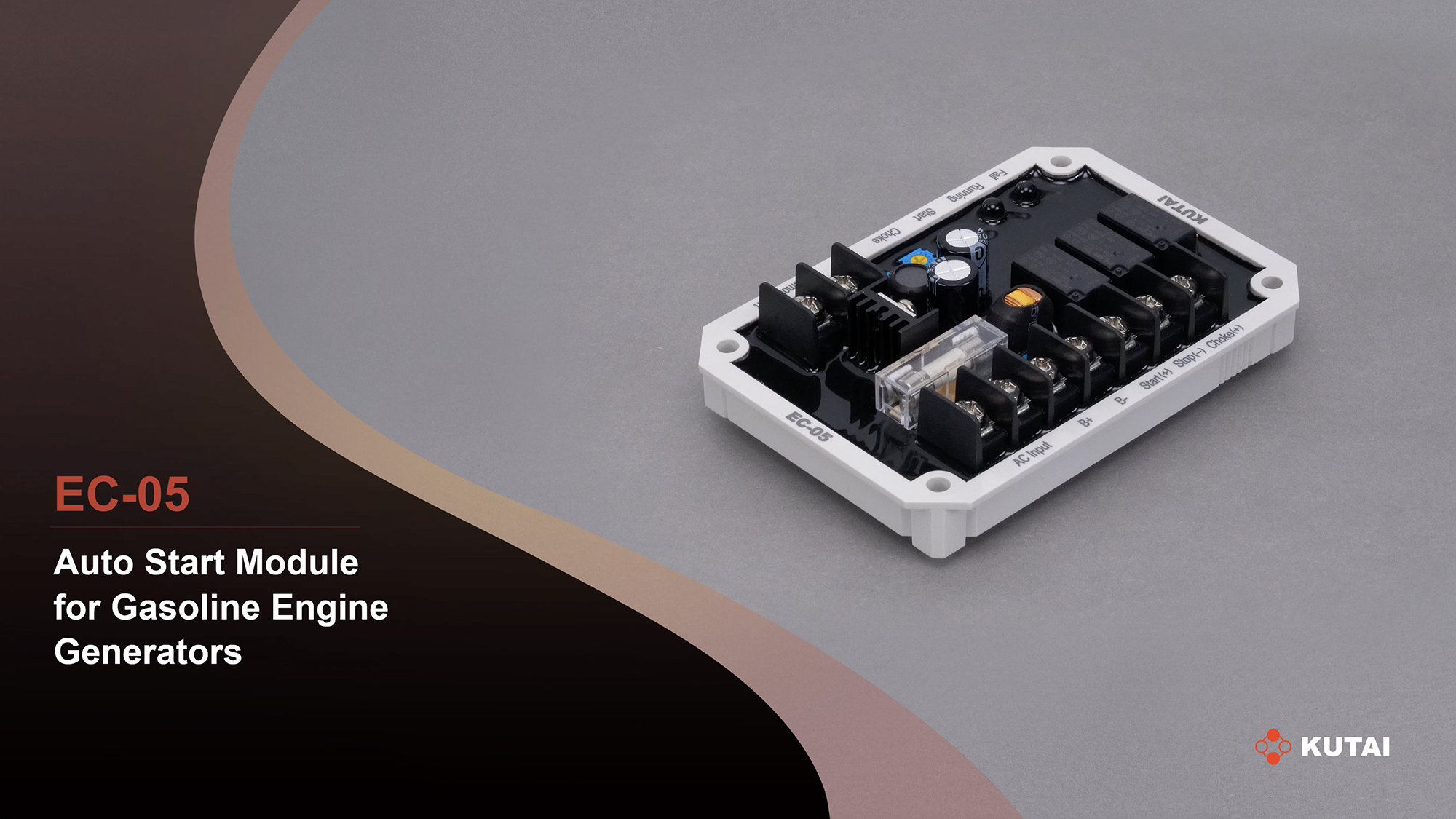

Auto Start Module for Gasoline Engine Generators
EC-05 can accept signals from a remote switch or an ATS to automatically start and stop a gasoline engine generator and obtain remote operation. It is suitable for key start gasoline engine generator equipped with a starter motor but without automatic start and stop function.
The EC-05 control module has choke control function making it especially suitable for use in cold regions.
The EC-05 control module has choke control function making it especially suitable for use in cold regions.
Features
- Suitable for key switch type gasoline engine generators without automatic start and stop function
- Choke control makes unit especially suitable for use in cold regions
- Small size, low cost, low power consumption and high stability
- Terminal blocks for easy installation and maintenance
- Built-in DC power supply protection fuse for safety
- Three engine cranking attempts
- Engine running and Failed Start LED Status Indicators
- Three time delay adjustment potentiometers
- UL94-V0 epoxy encapsulation for use in harsh environments
Specifications
