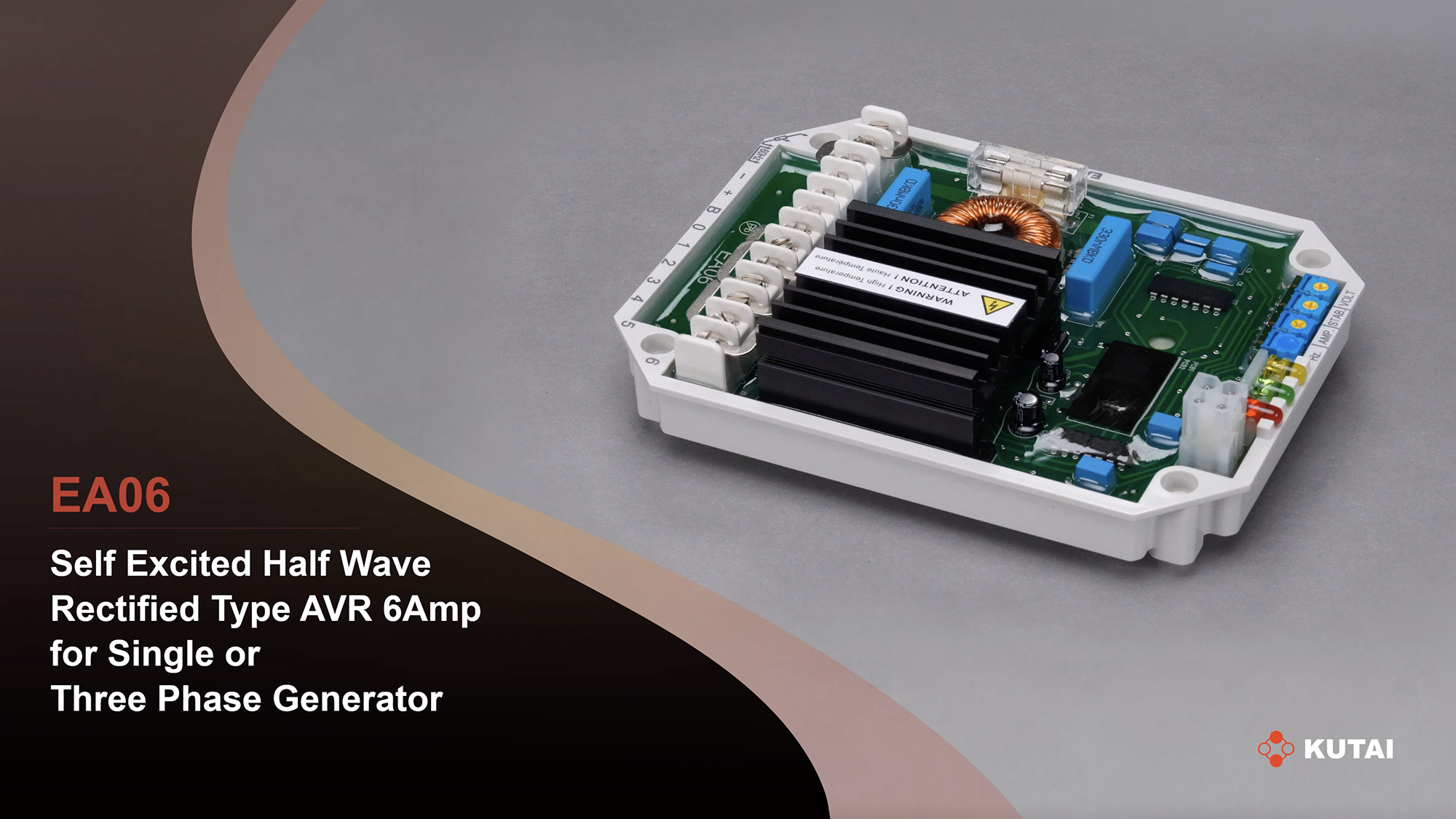

Self Excited Half Wave Rectified Type AVR 6Amp for Single or Three Phase Generator

EA06 self excited brushless type Generator Automatic Voltage Regulator is a compatible replacement for the Mecc Alte Spa AVR model UVR6.
Sensing input 220 to 480 Vac model available (EA06-220V)

All manufacturer names and numbers are used for reference purpose only and do not imply that any part is the product of these manufacturer.

Features

Voltage regulation less than +/-1%
Sensing input 110 to 480 Vac for single phase sensing and three phase sensing
Rated frequency 50/60 Hz
Power input 50 to 280 Vac
Low frequency and over excitation protection
EMI suppression

Specifications

Specifications
Sensing Input	Terminal 1-2 3-4 5-6 Can be connected to Y or △ 110 to 480 Vac 1 or 3 phase 50/60 Hz
Power Input	50 to 280 Vac (1,2) 50/60 Hz
Output	Voltage 63 Vdc @ 220 Vac input Current Continuous 6A Max.Intermittent 7A for 10 seconds
Voltage Regulation	Less than +/-1% (with 4% engine governing)
Build Up Voltage	Residual voltage above 5 Vac 25 Hz
External Voltage Adjustment	100K ohm 1/2 watt +/-5%
Static Power Dissipation	Max. 5 watts
EMI Suppression	Internal electromagnetic interference filtering
Under Frequency Protection	Adjustable range 42 to 62 Hz
Excitation Winding Resistance	DC resistance 10 to 100 ohms
Over Excitation Protection	25 to 55 Vdc @ 0.1 to 20 seconds

AVR Control Functions
VOLT	Voltage adjustment
STAB	Stability adjustment
U/F	Setting under frequency protection knee point
AMP.	Over Excitation Setting

Environment
Operating Temperature	-40 to +60 °C
Storage Temperature	-40 to +80 °C
Relative Humidity	Max. 95%
Vibration	1.5 Gs @ 5 to 30 Hz 5.0 Gs @ 30 to 500 Hz

Physical Specifications

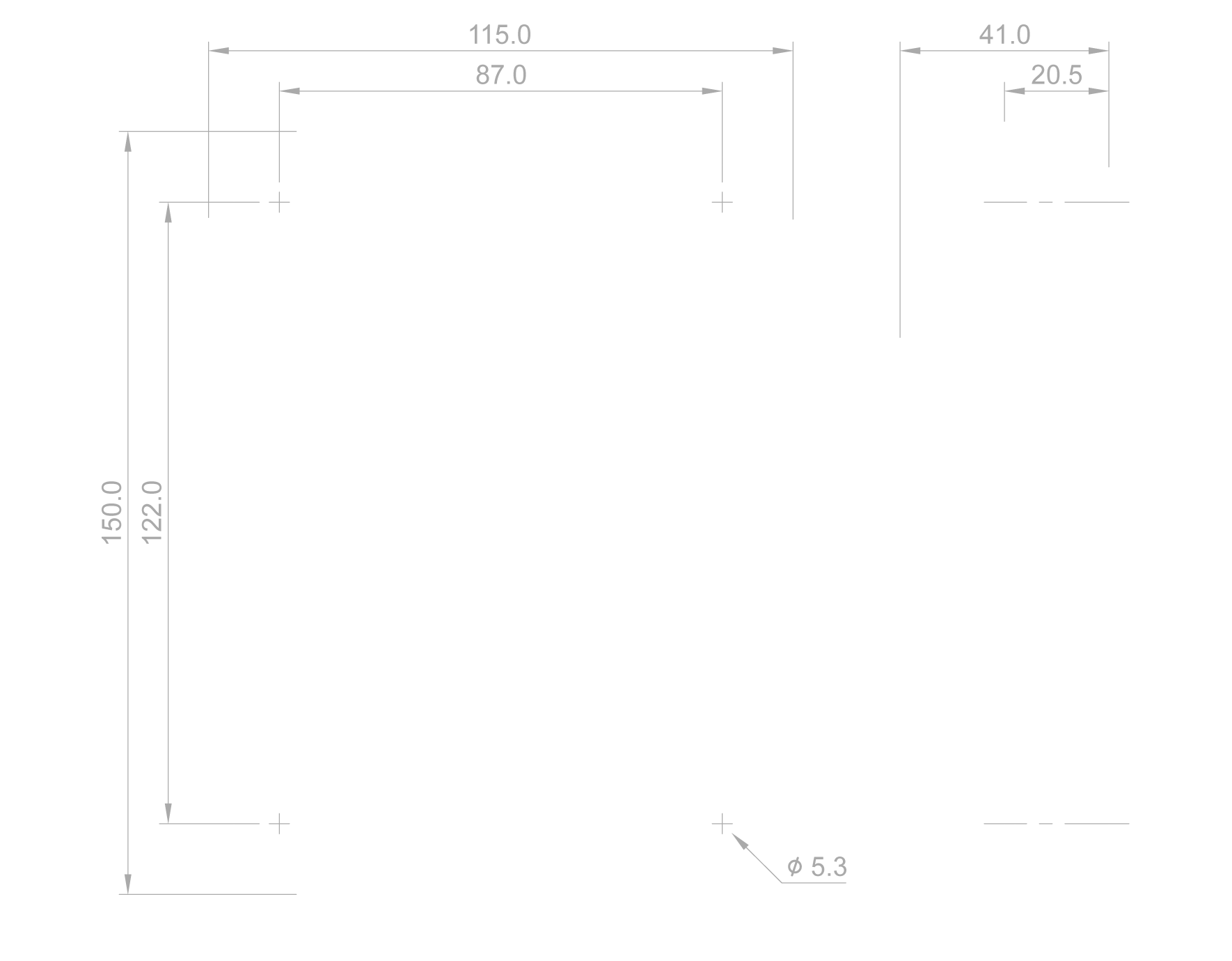

Dimensions	150.0 (L) x 115.0 (W) x 41.0 (H) mm
Weight	440 g +/-2%
