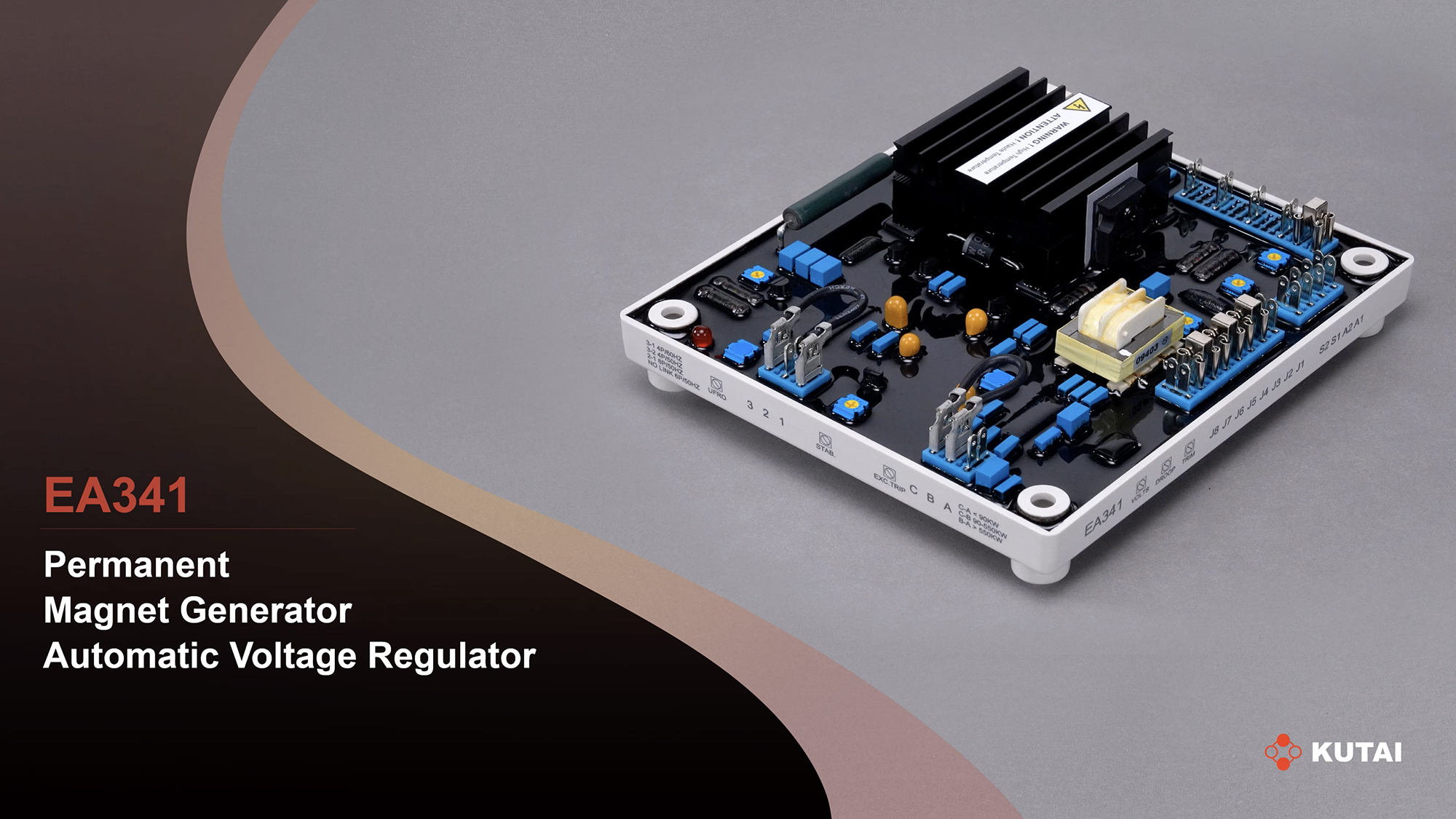

Permanent Magnet Generator Automatic Voltage Regulator
EA341 Permanent Magnet Generator type voltage regulator is a compatible replacement for Newage Stamford MX341 and Onan 305-0846.
- All manufacturer names and numbers are used for reference purpose only and do not imply that any part is the product of these manufacturer.
Features
- Voltage regulation less than +/-1%
- 3 phase PMG power input
- For use in parallel operation
- Adjustable EXC TRIP, DIP, TRIM and DROOP functions
- Soft start voltage ramping
- Under frequency roll off protection
- UFRO and over excitation LED indicators
Specifications
