PTM-15 AC to DC Power Supply Module for ATS

PTM-15

DC Power Supply Module for ATS

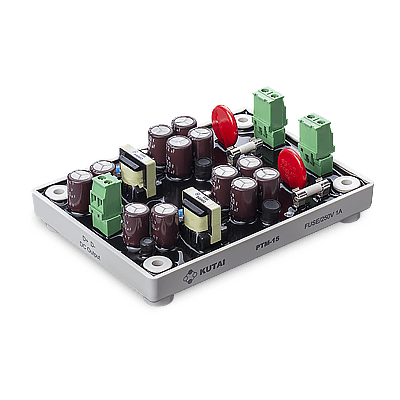

PTM-15 DC Power Supply Module connects to the Utility and Standby AC power inputs of an Automatic Transfer Switch (ATS) and converts these voltages into a set of DC power outputs. It provides stable DC power supply to the control circuit for the Kutai ATS-245-DC controller or the DC-type BTB-ATS. It's the best solution when there is no DC power supply or difficult to obtain DC power.

Electrical Specifications

  • AC Power Input (L, N)
  • Voltage 90 to 305 Vac 1 phase, 2-wire
    Frequency 50 / 60 Hz
    Fuse specification 5 x 20 mm S505-1A, slow blow
    Recommended wire size 1.25 mm2 (AWG16)
  • DC Power Output (D+, D-)
  • Voltage 15 Vdc +/-1%
    Current Max. 0.6 A
    Recommended wire size 1.25 mm2 (AWG16)
  • Protection Functions
  • DC Output Short Circuit Protection
    DC Output Over Voltage Protection
  • Operating Temperature
  • -40 to +70 °C
  • Storage Temperature
  • -40 to +85 °C
  • Relative Humidity
  • Less than 95%
  • Vibration
  • 5.0 Gs @ 60 Hz
  • Dimensions
  • 135.0 (L) x 100.0 (W) x 42.0 (H) mm
    5.31 (L) x 3.94 (W) x 1.65 (H) inch
  • Weight
  • 410 g +/-2%
    0.9 lb +/-2%

Downloads

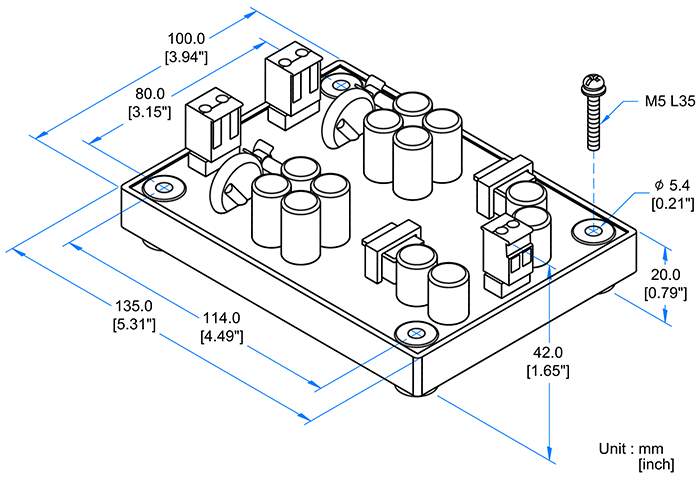

Drawing and Dimensions
