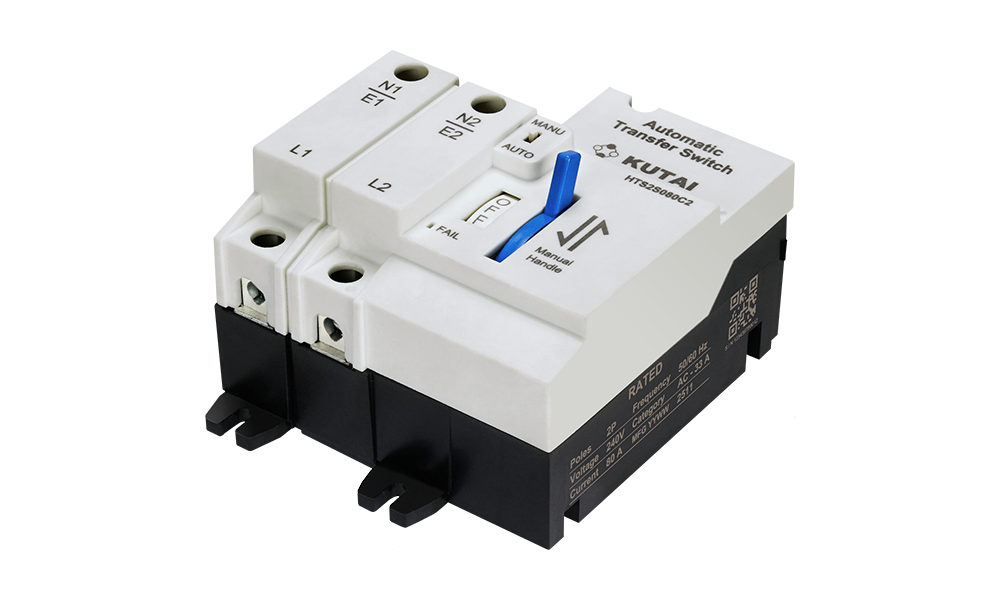

HTS Residential Automatic Transfer Switch (ATS)
2P/3P 80A
The HTS residential Automatic Transfer Switch (ATS) adopts an all-in-one design that integrates the switch mechanism and microcontroller-based controller in a single unit. With an overall height matching BH-type MCCBs, it fits seamlessly into household distribution boards for quick installation. Available in 2-pole 80 A and 3-pole 80 A versions for 110 V / 220 V systems. During transfer, an intermediate “both sources OFF” pause provides arc-extinction time, enabling safe switching at rated voltage and current. Compact dimensions, easy installation, and clean wiring make HTS ideal for homes, telecom base stations, small renewable systems, and gasoline-generator backup. An optional RS-80 engine remote-start module can automatically start the standby generator upon mains failure, delivering a fully automatic, complete ATS solution.
Patented:
U.S. Pat. No. Pending
TAIWAN Pat. No. Pending
CHINA Pat. No. Pending
Patented:
U.S. Pat. No. Pending
TAIWAN Pat. No. Pending
CHINA Pat. No. Pending
Features
- All-In-One Design – Integrated switch and microcomputer controller.
- Auto / Manu Selector – Equipped with an AUTO/MANU mode selector; the handle can be operated in MANU mode.
- Built-in Four High-Breaking Capacity Fuses
- Dual-Power OFF Position During Switching – Provides arc extinction time and allows switching under rated voltage and current.
- Mechanical Lugs – Eliminates the need for crimp terminals.
- Switch Position Indicator Window – Provides clear visualization of conduction status.
- Transfer Failure Indicative LED.
- 2-second confirmation delay on power loss and restoration – Eliminate unnecessary switching by the ATS.
- Durable Switching Mechanism – Operation life exceeding 6,000 cycles
- Compliant with IEC 60947-6-1 international standard and AC-33A utilization category.
- Flame retardance rating UL94-V0.
- The height of the HTS transfer switch is same as BH-type MCCB.
Specifications
