PTS Dedicated Remote Operator Display Module
The ATSC403B can be installed on the cabinet panel. This allows users to operate the system, monitor the real-time status of the ATS, and configure parameters directly from outside the cabinet without opening the door, significantly enhancing operational convenience and safety.
Features
- Connected to the PTS controller via two USB Type-C cables
- Microcontroller-based program control with IP65 Rating dust tight and against low-pressure water jets.

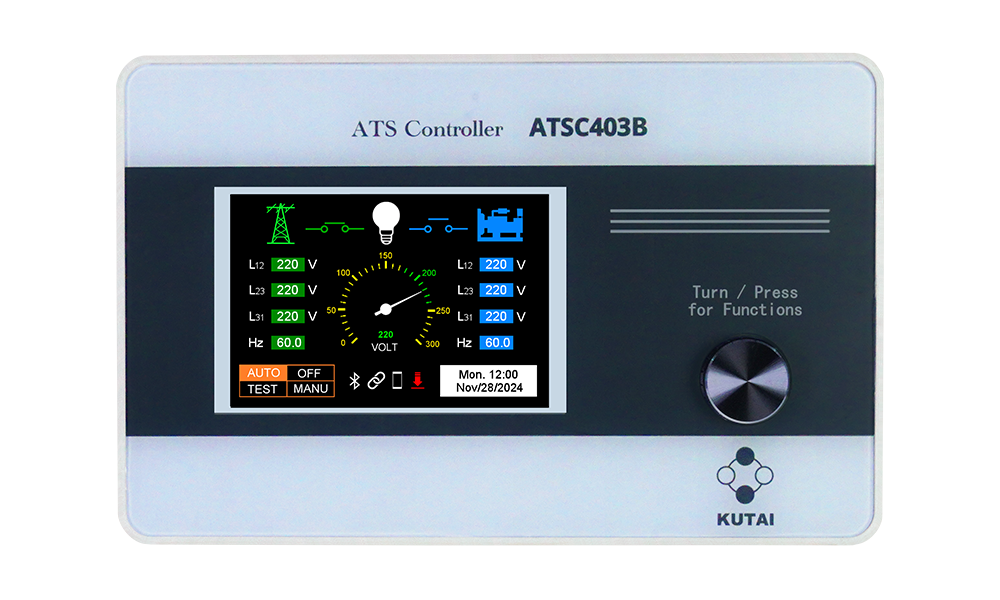

- Equipped with a 3.5-inch color LCD, synchronized with the PTS controller
- Multi-function rotary knob; all settings can be operated directly from the panel

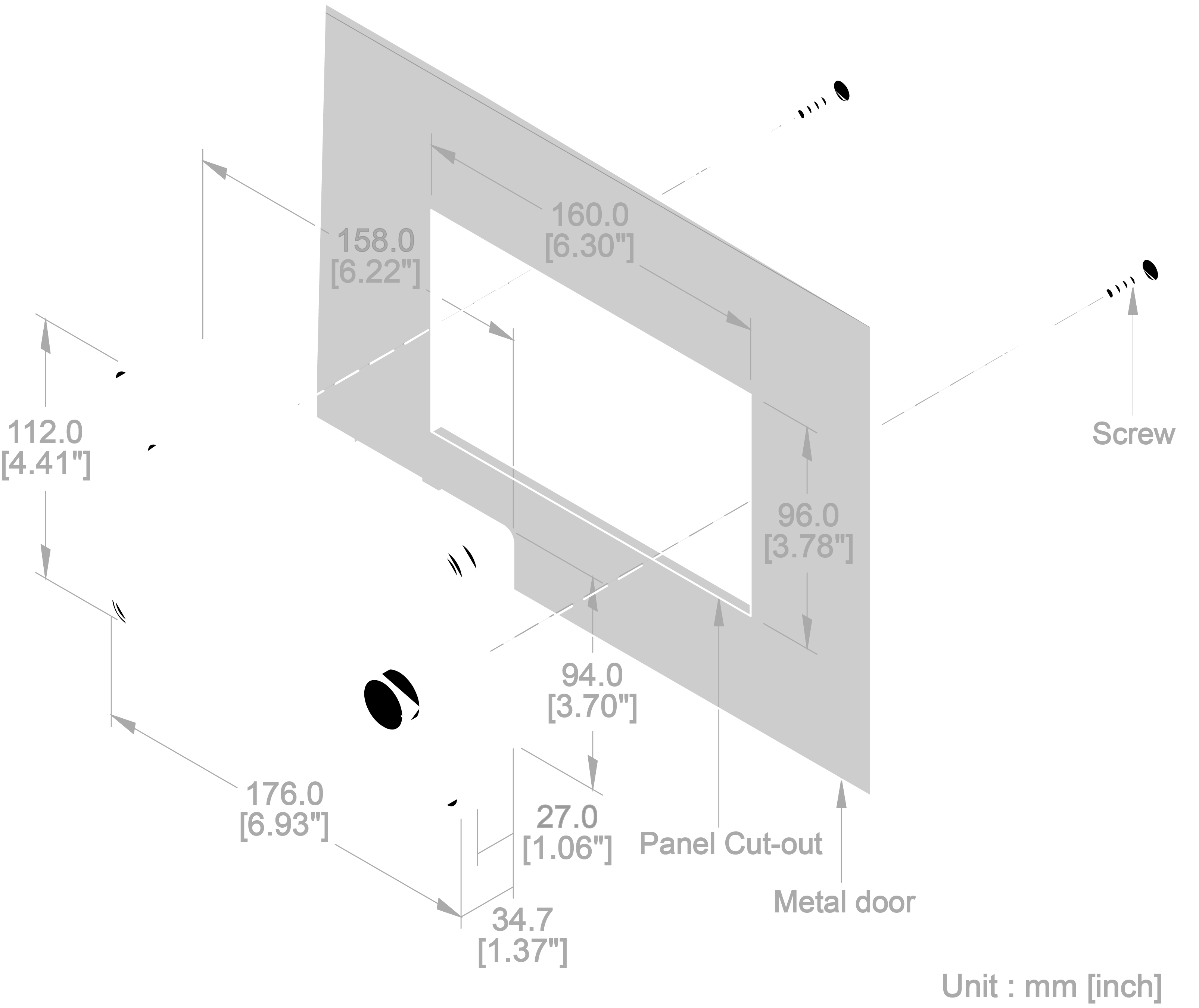

- Panel mounting design for convenient direct operation and monitoring outside the enclosure.
- Supports numerical and analog meter display for convenient real-time power value measurement.
- Multilingual interface options: Traditional Chinese, English, Japanese, and Spanish
- All fault messages are accompanied by an audible alarm to alert the user.
- Built-in radar sensing function: when the device is in sleep mode, it automatically detects approaching users and wakes the screen instantly.
Specifications
