Dedicated Current & KCU communication module interface for Kutai Control Unit

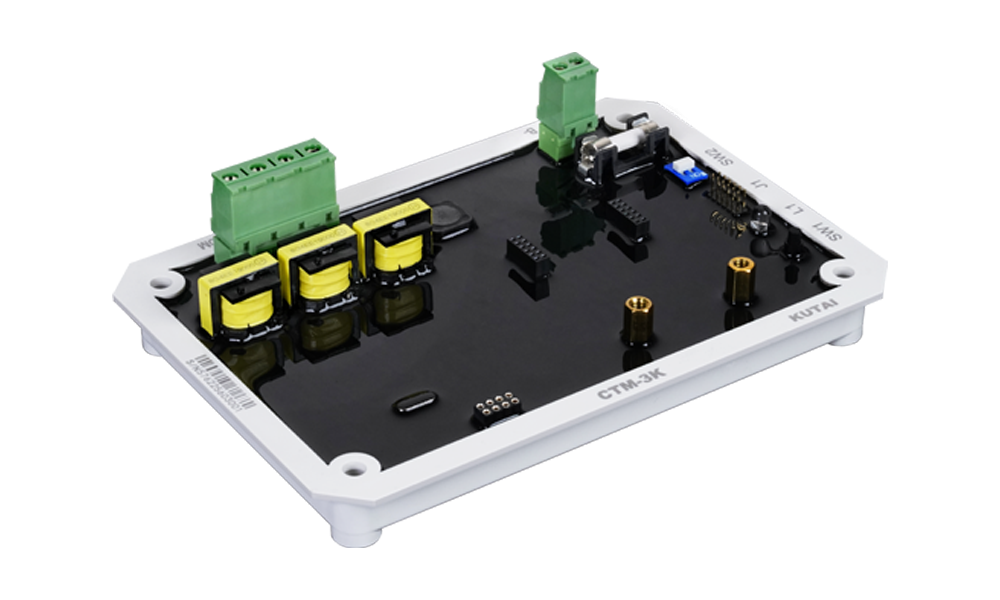

CTM-3K is an integrated unit with current sensing and a KCU module installation interface. It supports single-phase and three-phase power systems, providing Kutai control units with load current display.
Compatible with common CT specifications on the market: CT primary current 50 to 3000A, CT secondary current selectable as 1A or 5A.
The CTM-3K to control unit communication cable features a foolproof connector design and plug-and-play functionality. After installation, it automatically detects the connection status for display, without complicated setup.
This unit provides two KCU module slots, enabling simultaneous remote communication connections and helping users easily build a stable and high-efficiency remote communication monitoring system.
Features
- Integrated current sensing and communication module interface, saving space and material cost
- Provide load current reading for single and three phase power system
- CT primary current 50 to 3000A, secondary current selectable as 1A or 5A
- Equipped with a no-load current zero calibration button
- Automatic connection detection display after installation; no setup operation required
- Supports installation of up to two KCU modules simultaneously for remote communication
- Communication cable features a foolproof keyed connector design to prevent reverse connection.
- Power and connection status indicator LEDs
● Steady Green: DC power supply ON
● Steady Red: Connection to the controller interrupted
● Flashing Green: Normal operation (CT secondary ratio 1A)
● Flashing Red: Normal operation (CT secondary ratio 5A)
Specifications
