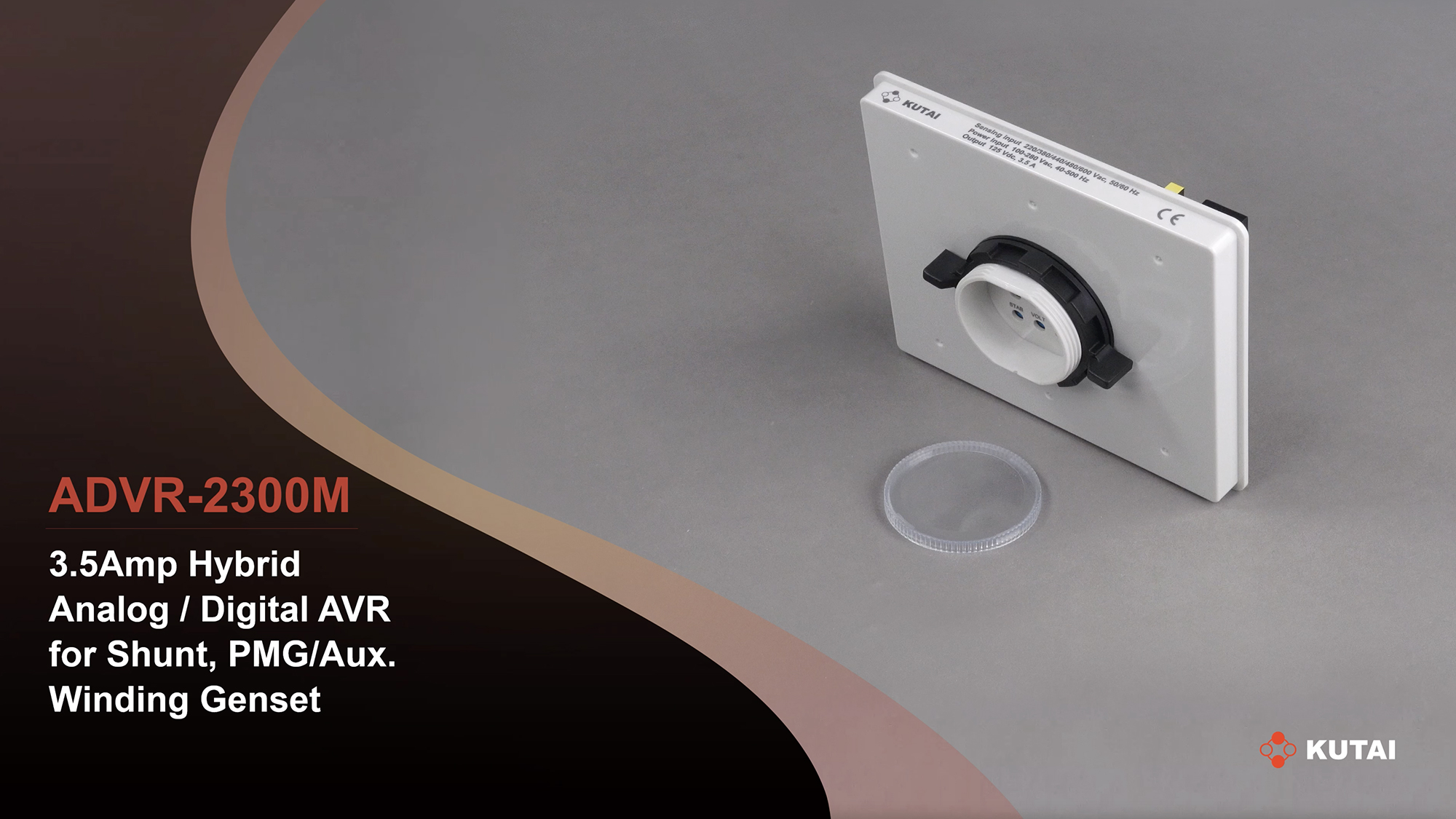

ADVR-2300M

3.5Amp Hybrid Analog/Digital AVR for Shunt, PMG/Aux. Winding Genset

ADVR-2300M is a hybrid Analog/Digital AVR which is compatible with Marathon DVR2000 Series. This voltage regulator can be used on single/three phase sensing and Shunt/PMG/Aux.Winding. It has PF (power factor) correction inputs and the facility for droop CT connection. Employing a digital circuit for voltage sensing and under frequency protection, it can effectively minimize the output voltage variations and under frequency knee point drifted affected by the changes of environment temperature.
* Compatible with KUTAI EPMG Excitation Boost Module or IVT Excitation Auxiliary Power Converter to boost for self-excited (shunt) generator during heavy transient loads.

Features

Power input single phase 60 to 300 Vac @ 50 to 500 Hz
Sensing input 1 or 3 phase 220 to 600 Vac programmable, RMS reading
Voltage regulation less than +/-0.5%
50/60 Hz selectable
Multiple power input source SHUNT, AUX, HARMONIC, PMG
Inverse-time over excitation and under frequency protection
Soft start voltage ramping
Built-in high capacity protection fuse
Panel mounted, internal wiring external adjustment
Apply with KUTAI EPMG-1270/EPMG-2470 or IVT-1260/IVT-2460 to boost for self-excited (shunt) generator during heavy transient loads
Digital circuit for voltage sensing and under frequency protection
Effectively minimize the output voltage variations and under frequency knee point drifted affected by temperature changes

Specifications

Specifications
Sensing Input	Voltage 220 to 600 Vac 1 phase or 3 phase DIP switch setting Frequency 50/60 Hz DIP switch setting
Power Input	Voltage 60 to 300 Vac 1 phase 2 wire Frequency 50 to 500 Hz
Excitation Output	Voltage Continuous 125 Vdc @ power input 220 Vac Current Continuous 3.5A Intermittent 7A for 10 seconds Resistance ≧ 18 ohms @ power input 110 Vac / ≧ 36 ohms @ power input 220 Vac
External Voltage Adjustment	Max. +/-5% @ 500 ohms 1 watt potentiometer Max. +/-10% @ 1K ohms 1 watt potentiometer
Voltage Regulation	Less than +/-0.5% (with 4% engine governing)
Build Up Voltage	5Vac 25Hz residual volts at power input terminal
Soft Start Ramp Time	4 seconds +/-10%
EMI Suppression	Internal electromagnetic interference filtering
Static Power Dissipation	Max. 6 watts
Burden in Shunt & PMG Wiring	550 VA @ power input 110 Vac 1100 VA @ power input 220 Vac
Quadrature Droop Input	CT 1A or 5A greater than 5VA (DIP switch setting) Sensitivity Max. +/-7% @ P.F +/-0.7
Analogue Input	Input resistance greater than 2K ohms Max. Input +/-5 Vdc or +10 Vdc Sensitivity 1 Vdc for 2.5% Generator Volts
Under Frequency Protection(Factory Presets)	50 Hz system knee point at 45 Hz 60 Hz system knee point at 55 Hz
Over Excitation Protection	Inverse-time 125 +/-4 Vdc @ power input 220 Vac
Voltage Thermal Drift	Less than 3% at -40 to +70 °C

AVR Control Functions
VOLT	Voltage adjustment
STAB	Stability adjustment
U/F	Setting under frequency protection knee point
DROOP	Droop adjustment
TRIM	Analogue input adjustment
DIP	Voltage droop ratio setting

Indication LED
O/E	Over excitation protection indicator
U/F	Under frequency protection indicator

Environment
Operating Temperature	-40 to +60 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	Max. 95%
Vibration	5.5 Gs @ 60 Hz

Optional Accessories
WR01 AVR wrench

CE Test Standards
EN61204-3:2001	CISPR 22 Class B IEC61000-3-2:2005+A1:2800+A2:2009 IEC61000-3-3:2008
EN61204-3:2001	IEC61000-4-2:2008 IEC61000-4-4:2004+A1:2010 IEC61000-4-6:2008	IEC61000-4-3:2006+A1:2007+A2:2010 IEC61000-4-5:2005 IEC61000-4-11:2004
