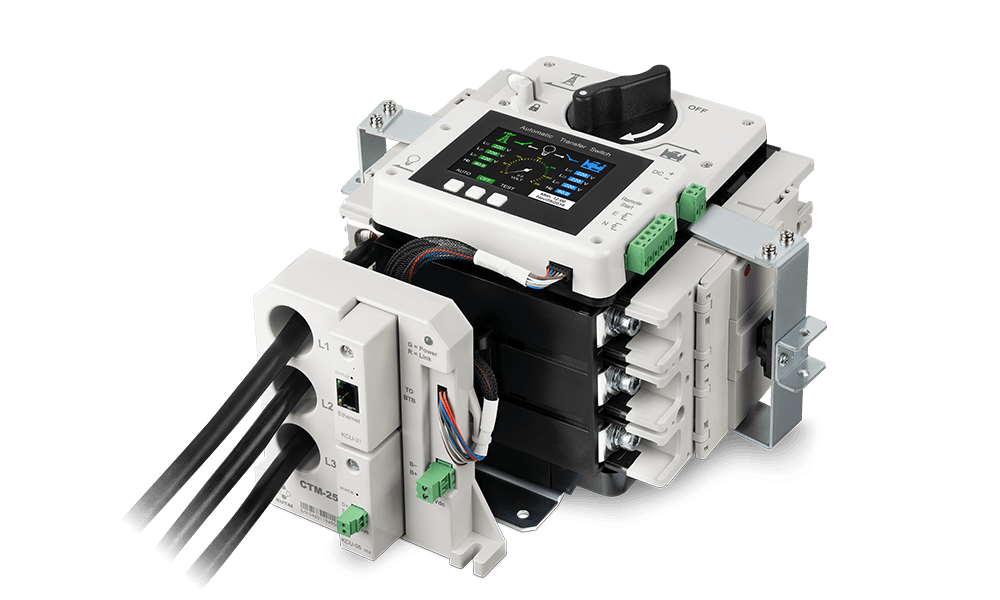

BTB Type ATS All-In-One Current Transformer (CT)& Communication Module

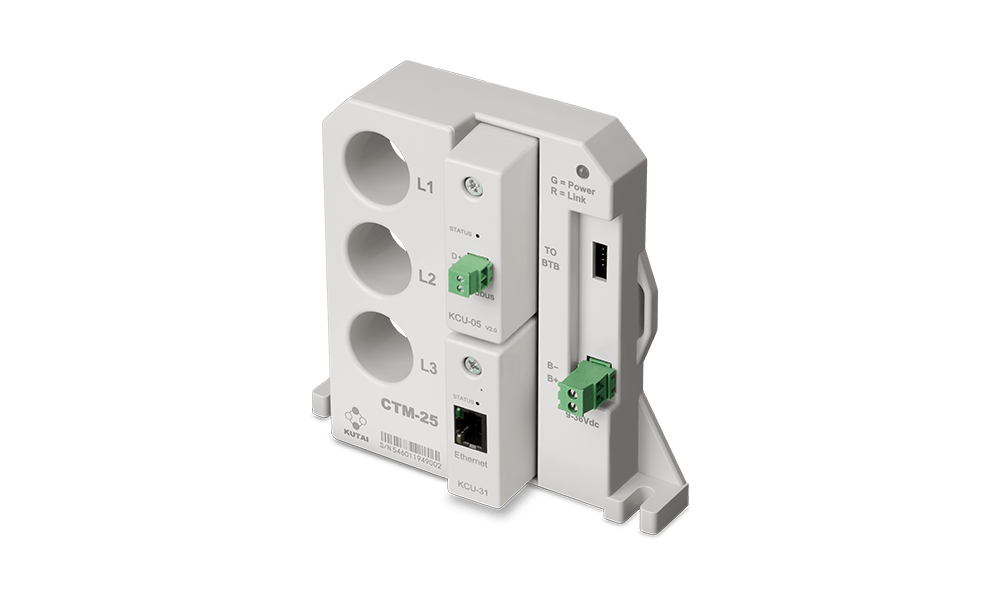

BTB Type ATS All-In-One Current Transformer (CT) & Communication Interface Module. An optional add-on module to provides BTB controller with load current readings and integrated remote communication module connection interface to simplify connection and space saving.
CTM-25 can use with KCU remote communication module, through Modbus RTU protocol (KCU-05), SNMP network protocol (KCU-06), Modbus TCP/IP Internet protocol (KCU-07), Ethernet Network (KCU-31) and Wi-Fi (KCU-41) remote communication, achieve remote monitoring and control of BTB Type ATS devices.
Features
- One piece integrated Current Transformer and Communication Interface, for increased convenience and space saving
- Exclusive for BTB type ATS with trouble free connection
- Provide load current reading for single and three phase system
- Plug and play, no configuration required
- Connect up to two KCU-XX communication modules
- Mistake-proof connection design
- Wiring cable-tie fixture design
- Power input and Connection status indicator
● GREEN indicator (Constant) : Power input connected
● RED indicator (Flashing) : In communication with BTB
● RED indicator (Constant) : BTB & CTM-25 Connection lost
