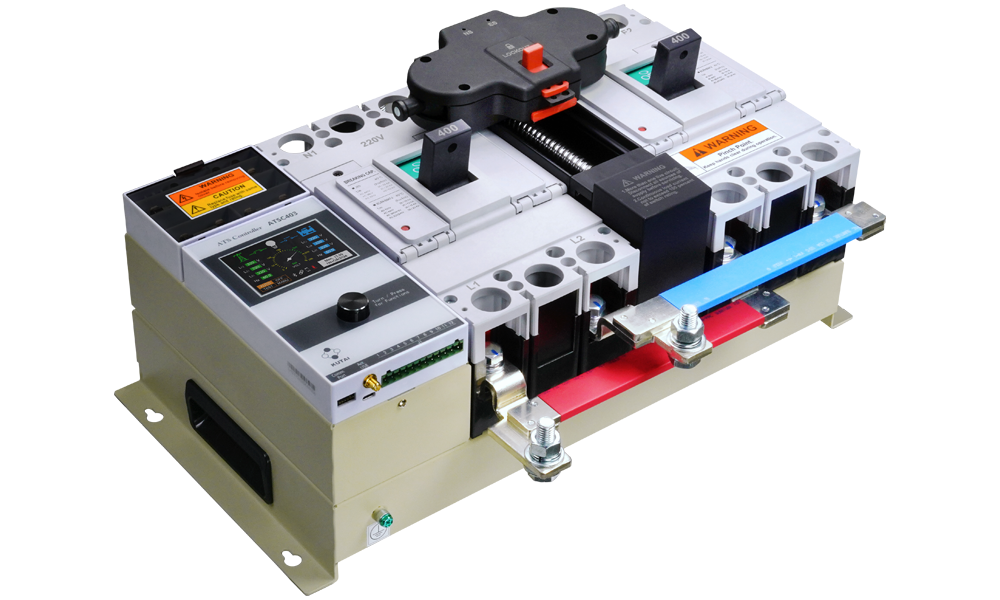

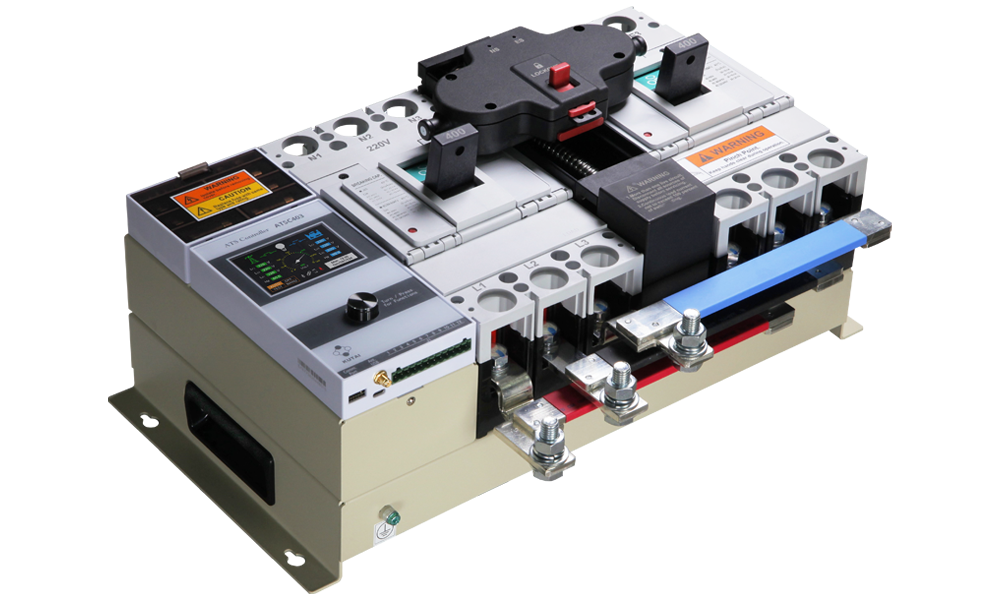

PTS Type ATS Programmable Automatic Transfer Switch
2P/3P/4P 400Amp 110Vac - 480Vac
The PTS Series Programmable Automatic Transfer Switch (ATS) features microcontroller-based program control and an integrated design that combines the transfer switch and controller All-In-One, saving panel space while reducing installation time and material costs. It is equipped with a 3.5-inch color LCD that supports a multilingual interface, provides both numerical and analog meter displays, and monitors full-phase voltage for the normal/emergency sources, phase loss, frequency, and reverse phase sequence. Built-in Wi-Fi and Bluetooth enable remote monitoring and configuration without an additional communication module. It also supports advanced functions such as event logs and scheduled automatic exercise tests.
Patented:
TAIWAN Pat. No. I881448
U.S. Pat. No. Pending
CHINA Pat. No. Pending
Patented:
TAIWAN Pat. No. I881448
U.S. Pat. No. Pending
CHINA Pat. No. Pending
Features
- Integrated controller with switch, save space, installation time and cost
- 3.5” color LCD panel, analog gauge-style and digital meter display, multilingual user interface
- Built-in Wi-Fi and Bluetooth connectivity—no additional communication module required
- Monitors and displays full-phase voltages, phase loss, frequency, and reverse phase sequence for both utility and generator power sources
- Equipped with both electric and manual operation functions, featuring mechanical and electrical interlock protection to prevent simultaneous connection of utility and generator power sources to the load.
- Equipped with Lockout–Tagout (LOTO) to prevent accidental energization that may cause electric shock or equipment damage
- All settings can be configured directly on front panel or through Bluetooth connection with a smartphone
- Provides auxiliary contact outputs for both utility and generator power sources
- PTS firmware can be updated via Wi-Fi network or USB connection to a PC
- Controlled pause at the OFF position for both utility and generator power sources during transfer
- Supports automatic exercise scheduling configurable from 1 to 4 weeks.
- Main transfer switch is available in Class CB or PC; When a Class CB breaker trips, a message will be displayed accordingly.
- All fault messages are accompanied by an alarm sound to alert the user
- Stores up to 250 event logs to facilitate fault tracking and analysis
- Provides one set each of user-selectable from assigned function output and input contacts.
- Programmable pause period in Auto Mode to prevent unnecessary generator operation (DC power input required)
- Optional ATSC403B enables synchronized operation and monitoring.
- Compliant with IEC 60947-6-1 International standard, AC-33A utilization category, and UL 1008 Type A standards
- Features remote diagnostic capability with code displays for settings, sensor status, and input voltage, enabling factory technicians to analyze unexpected events.
Specifications
